Electronic Ignition Tech Specs

3D Models

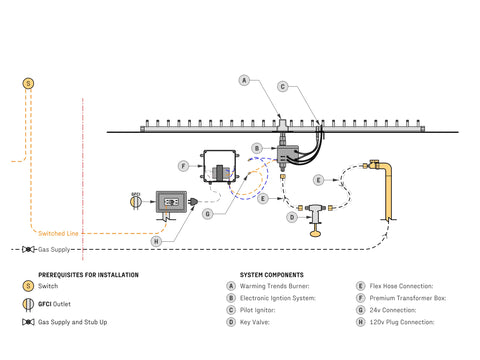

System Layered Diagram

Linear

Round

Fuel requirements

GAS TYPE - before making all gas connections, ensure that the ignition system is compatible with the available fuel supply. Check all labeling on the appliance to confirm appliance fuel requirement.

GAS PRESSURE - The installer is responsible for using the correct fuel lines and/or regulation to provide gas to the fire feature within the specified minimum and maximum gas inlet pressures.

Electrical requirements

The Electronic Ignition System operates on 24 Volts AC power ONLY.

  • Do not attempt to power this system using 110 Volts AC — permanent damage will result.
  • Acceptable input voltages to the supplied 24V AC transformer include:
    110V / 210V / 220V / 240V / 480V AC
    (Refer to the label on the supplied transformer for proper connection information.)
  • Recommended wire size:
    Use 12-gauge wire for all installations to ensure safe and consistent performance.

Note: All electrical work must comply with local codes. A licensed electrician should perform or review all wiring connections.

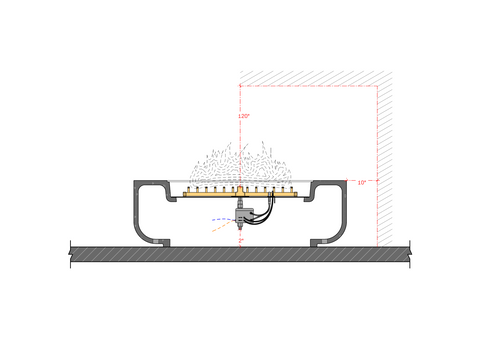

Clearance requirements

For fire features equipped with an electronic ignition system, the following minimum clearances from combustible materials must be maintained to ensure safe operation and compliance with manufacturer guidelines:

  • Overhead Clearance
    A minimum of 120 inches (10 feet) is required from the burner surface to any overhead combustible structure, including pergolas, eaves, and ceiling materials.
  • Side Clearance
    A minimum of 10 inches must be maintained from the outer edge of the fire feature to any vertical combustible surfaces such as walls, posts, or surrounding structures.
  • Clearance Below System
    A minimum of 2 inches of open air space beneath the ignition system is required to allow for ventilation and to prevent heat buildup against combustible surfaces.

These distances are based on testing and flame characteristics specific to electronic ignition burner systems and are essential for safe use in both residential and commercial settings.

Important: These clearance values represent the minimum requirements. Site-specific conditions or local building codes may necessitate additional clearances. Always refer to the full installation manual and consult with a licensed professional for final installation decisions.

Safety hazards & operating warnings

Improper use can cause harm or property damage

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

WARNING

DO NOT Attempt to Power using 110 Volts AC Power – Damage WILL RESULT

WARNING

Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.

WARNING

This system is meant to be installed and operated in OUTDOOR & WELL-VENTILATED spaces.

DANGER

CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed spaces.

DANGER

If you smell gas: Shut off gas to the appliance. Extinguish any open flame. If odor continues, keep away from appliance and immediately call your gas supplier or fire department.

DANGER

The system has no sensor if the burner is covered by an accessory, i.e. tabletop or all weather cover. If the unit is energized, the unit will ignite.

NOTICE

Installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, or International Fuel Gas Code. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code, ANSI/NFPA 70, if applicable.

NOTICE

The Electronic Ignition System will ignite only when energized and gas is supplied. Take proper precautions so that the unit only recieves power when intended.
